So here we go…the final phase of enabling vCenter HA in our vSphere 6.5 environment. To quickly recap what we have done thus far. We have deployed our two external PSC appliances, configured the certificates as well as the load balancer to service them. In the previous step (Part 4) we deployed vCenter Server and now we will enable the vCenter HA feature which is a NEW feature in vSphere 6.5.

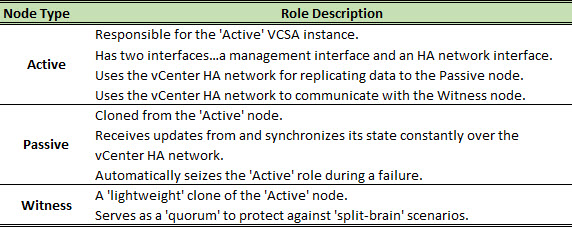

There will be a total of three (3) nodes in this configuration…Active, Passive and Witness. Each has a particular role.


Configure the vCenter HA Network

No matter which deployment workflow you intend on using (Basic or Advanced) to enable vCenter HA, a network must be created on your virtual switch. I am using a virtual distributed switch (vDS) in my environment; therefore I have created a distributed port group on my vDS (vCenter-HA-Network).

This vCenter HA network is a separate network segment from my main management network segement. The addresses that I am configuring must be static addresses. Here is a quick summary of the networks that I have…

  • vSphere Management (vCenter, PSC, NLB and ESXi Management) – 192.168.80.0 /24
  • IP Storage (iSCSI) – 192.168.81.0 /24
  • vMotion – 192.168.82.0 /24
  • vCenter HA – 192.168.83.0 /24

My vCenter HA Network segment is going to be on the 192.168.83.0 /24 network segment. Completely separate from my primary vSphere Management network. This network must have less than 10ms of latency.

First line of business for the Advanced Workflow is we have to manually add a second NIC to the vCenter Server appliance and connect it to the vCenter HA network. From vSphere Web Client I am going to edit the virtual hardware of the vCenter Server appliance. Simply add the new network adapter and connect it to the vCenter-HA-Network (vDS port group) as you can see below.

vcenter-2nd-nic
vCenter Server Appliance 2nd NIC

Once the adapter has been added to the configuration you must then configure a static IP address on the adapter. By default the adapter will appear as DOWN. Applying the static IP settings can be accomplished in one of two ways.

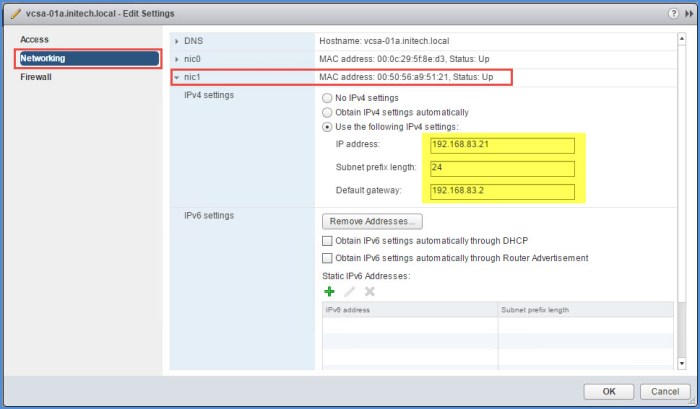

Option 1 – Through the vSphere Web Client navigate to Administration > System Configuration > Nodes and in the list of nodes select the FQDN of your vCenter Server appliance. Click the Manage tab and under Common select Networking. Under networking you should see two NICs (nic0 and nic1). Click the Edit button in the upper right-hand corner, expand the nic1 option and then select Use the following IPv4 settings and enter the static IPv4 address information.

Configure 2nd NIC via vSphere Web Client

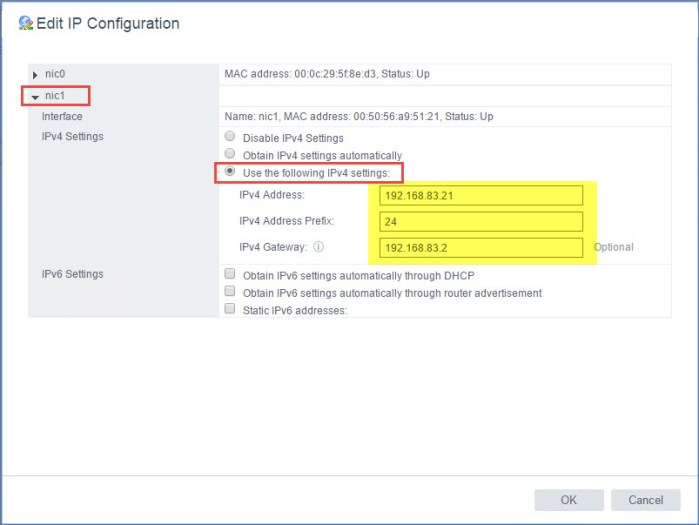

Option 2 – Open a web browser and access the Management Web UI of the vCenter Server appliance (https://<vcenter-fqdn&gt;:5480/). Log into the web interface using the ‘root’ credentials that you specified during the installation of the appliance. In the Navigator column on the left-hand side of the screen select Networking and then select Manage. Beneath the Networking Interfaces section you should see two NICs (nic0 and nic1). Click the Edit button to the right. Expand nic1 and then select Use the following IPv4 settings and enter the static IPv4 information.

Configure 2nd NIC via VCSA Management Web GUI

The status of the new interface should indicate UP within the web browser. Open a command prompt from you local system and PING the address to verify that the system is responding.

vCenter HA Advanced Configuration

Okay now it is time to go through the vCenter HA Advanced Configuration Workflow. During this procedure we will configure the vCenter HA network for the Passive and Witness nodes, clone the vCenter appliance onto differenti ESXi hosts and then finalize the vCenter HA configuration. Do not clone the vCenter appliance and place the Passive and Witness nodes to the same host, that defeats the whole purpose of vCenter HA.

  1. Log into the vSphere Web Client. Select Hosts and Clusters and then select the name of your vCenter Server (FQDN) at the top of the hierarchy. Select the Configure tab and then select vCenter HA. Click the Configure button.
    vcenter-ha-step-1

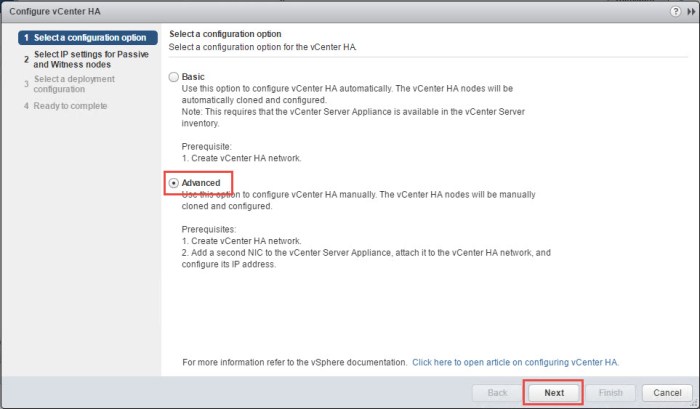

  2. The Configure vCenter HA wizard will appear. Select Advanced and then click Next.
    vCenter HA - Step 2.jpg

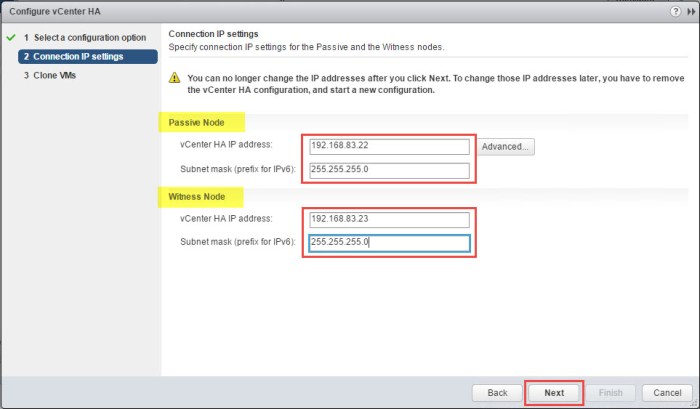

  3. On the Connection IP Settings page enter the static IP address and Subnet mask for the Passive Node and the Witness Node from the vCenter HA network subnet range. My range is the 192.168.83.0 /24 network. My vCenter Server (active) node is already configured with 192.168.83.21 /24. I want to remain in sequence so I am going to assign 192.168.83.22 /24 to my Passive Node and then assign 192.168.83.23 /24 to my Witness Node. Click Next. (Notice the warning on this page).
    vCenter HA - Step 3.jpg

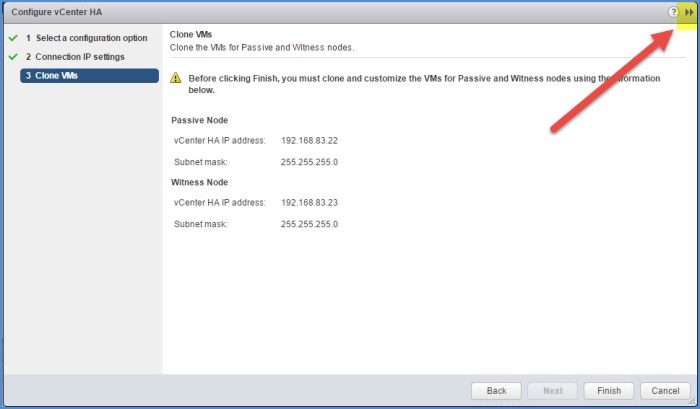

  4. Once everything is validated it will then proceed to the Clone VMs portion of the wizard. Click the >> in the upper right-hand corner of the wizard and pause here. DO NOT CLICK FINISH.
    vCenter HA - Step 4.jpg
  5. Right-click the vCenter Server VM in the virtual machine inventory and clone the VM…Clone > Clone to Virtual Machine.
    vCenter HA - Step 5.jpg

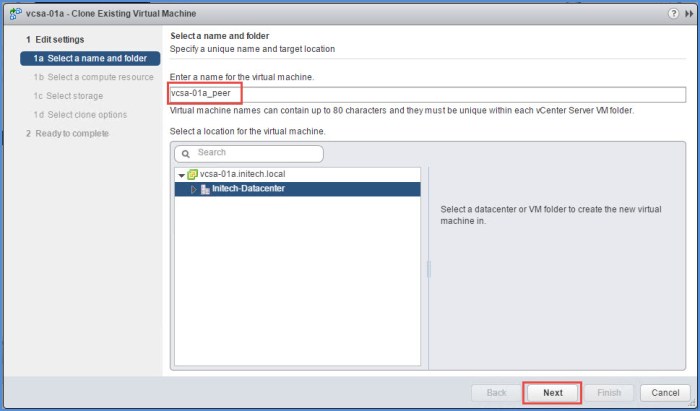

  6. In the clone wizard enter a VM name for the ‘passive node’. I’m using vcsa-01a_peer for my passive vCenter VM. Click Next.
    vCenter HA - Step 6.jpg

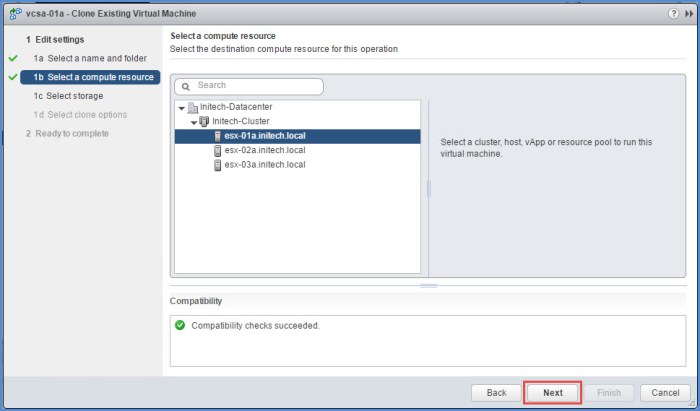

  7. In the ‘Select a compute resource’ window choose a different ESXi host from where your Active vCenter Server is running and click Next.
    vCenter HA - Step 7.jpg

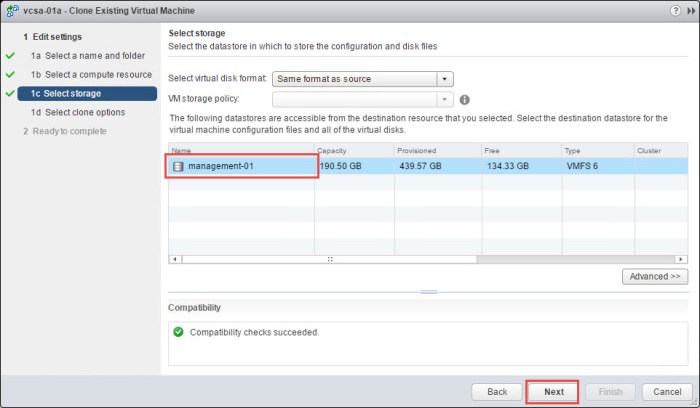

  8. On the ‘Select storage’ page select a datastore and click Next. I only have one datastore in my lab so my choice here is limited. In a real world deployment you most likely will place your Passive Node (and Witness Node) on a separate datastore.
    vCenter HA - Step 8.jpg

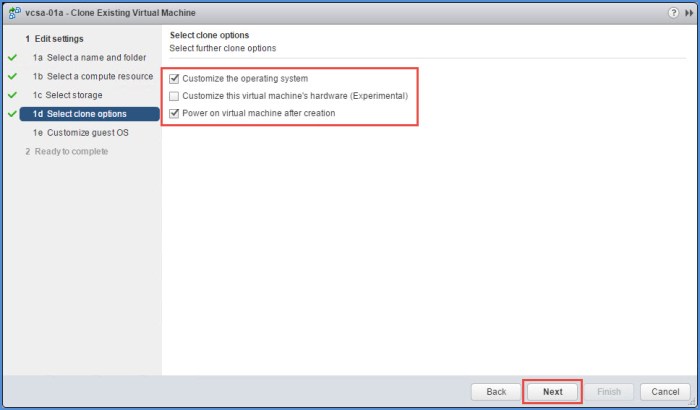

  9. On the ‘Select clone options’ page select the options for Customize the operating system and Power on virtual machine after creation and click Next.
    vCenter HA - Step 9.jpg

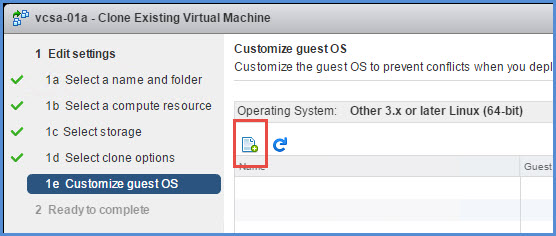

  10. Select the New Customization Spec button and a new wizard will appear.
    vCenter HA - Step 10.jpg
  11. On the ‘Specify Properties’ page of the Guest Customization Spec wizard, provide a name for the specification and click Next.
    vCenter HA - Step 11.jpg
  12. On the ‘Set Computer Name’ page enter the same exact name as the ‘Active’ node to be used on the ‘Passive’ node. Enter the domain name below. Click Next.
    vCenter HA - Step 12.jpg
  13. On the ‘Time Zone’ page select the Area, Location and Hardware Clock Setting and click Next. Use the identical time zone settings that you currently use on your vCenter Server Appliance. If you do not remember, log into the vCenter Server Management UI (the Port 5480 URL) and to verify.
    vCenter HA - Step 13.jpg

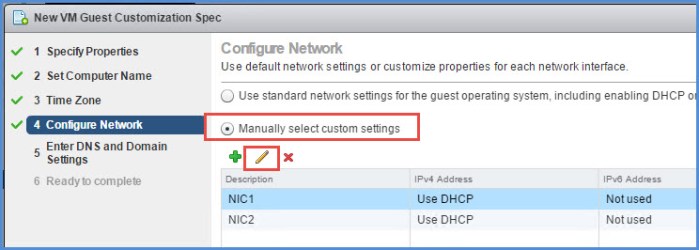

  14. On the ‘Configure Network’ page, select NIC1 and then select the pencil to Edit.
    vcenter-ha-step-14

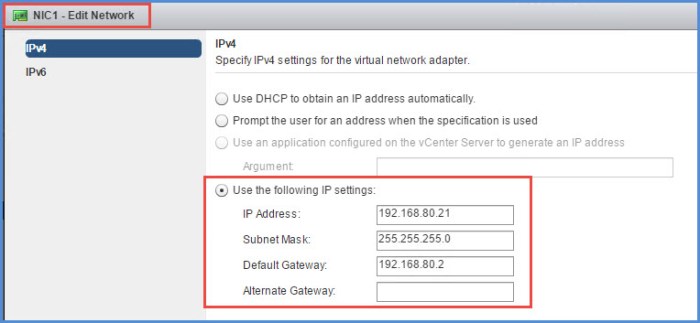

  15. In the ‘Edit Network’ window select Use the following IP settings and enter the same exact IP address being used by the Primary vCenter Server. Do not forget to enter a default gateway. Click OK.
    vCenter HA - Step 15.jpg

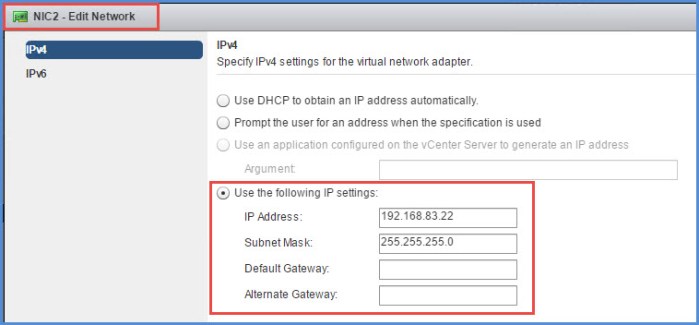

  16. Select NIC2 and click Edit. Here we will enter the static IP address settings for the vCenter HA network. Enter the IP address for the Passive Node (reference Step 3 above if you do not remember). Do NOT enter a default gateway on this interface.
    vCenter HA - Step 16.jpg
  17. Return to the ‘Configure Network’ page and verify your IP settings. Click Next.
    vCenter HA - Step 17.jpg

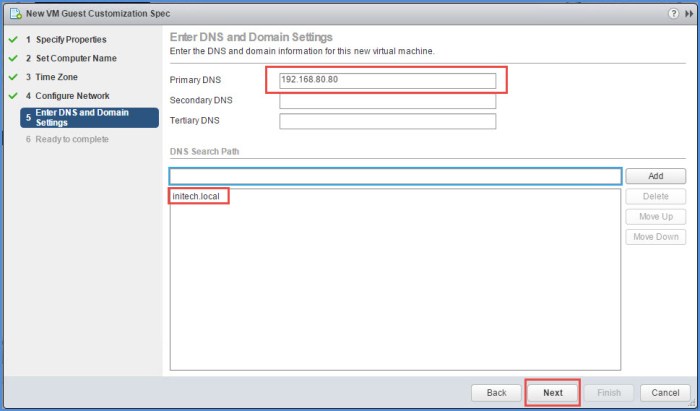

  18. On the ‘Enter DNS and Domain Settings’ page enter the IP settings for the Primary DNS (Secondary and Tertiary DNS if necessary), enter the DNS domain name and click Add. Click Next when you are ready to proceed. Click Finish on the next page and you will return to the original wizard where we were cloning the VM.
    vCenter HA - Step 18.jpg

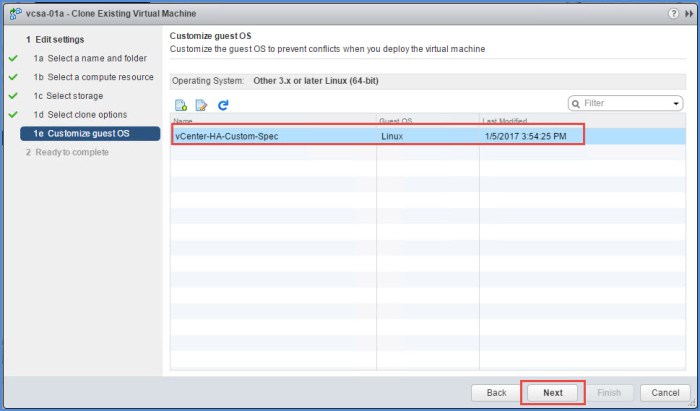

  19. You will return to the ‘Customize guest OS’ page. Select the customization that was just created and click Next.
    vCenter HA - Step 19.jpg
  20. Review the information on the ‘Ready to complete’ page and click Finish.
    vCenter HA - Step 20.jpg
  21. The clone process will begin. Allow it to finish and wait for the VM to power on. Once it is complete, right-click the ‘Active Node’ vCenter Server and begin the clone procedure again but this time for the ‘Witness Node’. Enter a name for the VM as it will appear in the VM inventory and click Next.
    vCenter HA - Step 21.jpg
  22. On the ‘Select a compute resource’ page choose a different ESXi host and click Next.
    vCenter HA - Step 22.jpg

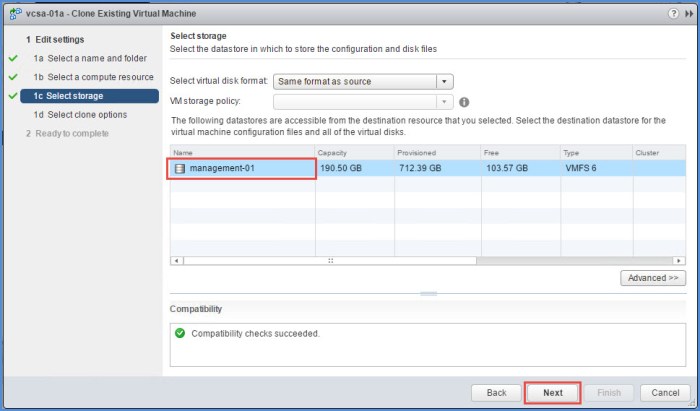

  23. On the ‘Select storage’ page choose a datastore and click Next.
    vCenter HA - Step 23.jpg
  24. On the ‘Select clone options’ page select Customize the operating system and Power on virtual machine after creation and then click Next.
    vCenter HA - Step 24.jpg

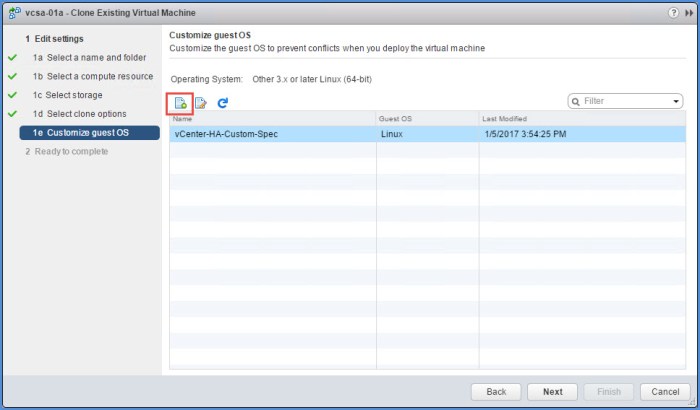

  25. We are going to create another Guest Customization. Click the Create button to begin a new customization.
    vCenter HA - Step 25.jpg

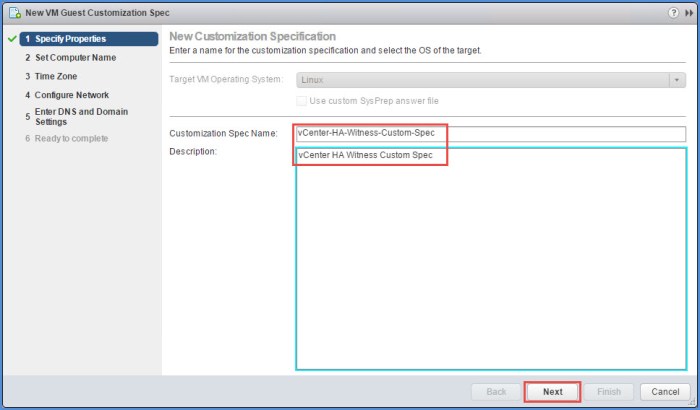

  26. Provide a name for the Witness appliances guest customization. Click Next.
    vCenter HA - Step 26.jpg
  27. On the ‘Set Computer Name’ page enter a name for the ‘Witness Node’ appliance and then enter the domain name. Click Next.
    vCenter HA - Step 27.jpg

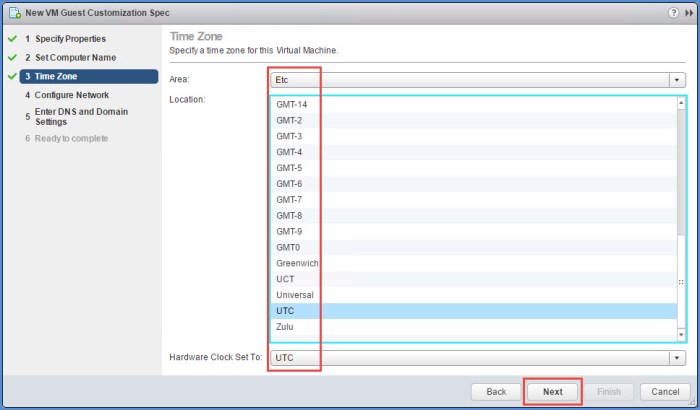

  28. On the ‘Time Zone’ page enter the correct time zone parameters just as we did with the ‘Passive Node’ appliance and click Next.
    vCenter HA - Step 28.jpg
  29. On the ‘Configure Network’ page select NIC2 and click Edit.
    vCenter HA - Step 29.jpg

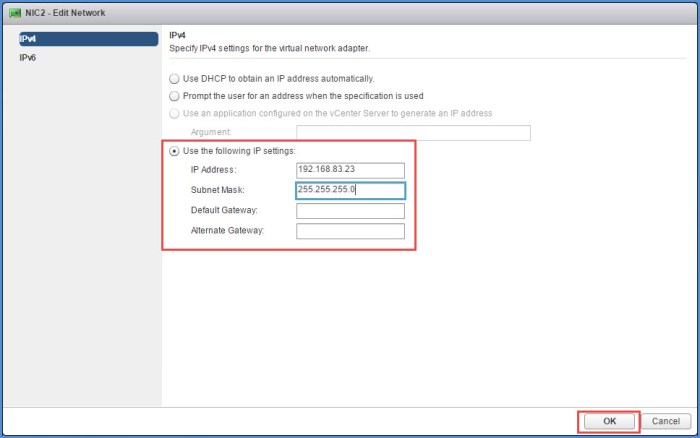

  30. In the ‘Edit Network’ window for NIC2 select Use the following IP settings and enter the IP address settings for the ‘Witness Node’ for the vCenter HA network. Do NOT enter a default gateway on this interface. Click OK.
    vCenter HA - Step 30.jpg
  31. Repeat the steps to apply the IP address settings on NIC1. Enter the same IP address used on the ‘Active Node’ on NIC1. Return to the ‘Configure Network’ window and review the parameters. Click Next.
    vCenter HA - Step 31.jpg

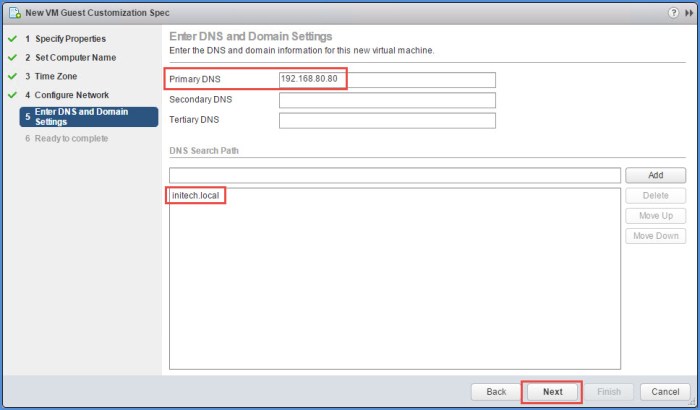

  32. On the ‘Enter DNS and Domain Settings’ page enter the Primary DNS (Secondary and Tertiary if necessary), enter the domain name and click Add. Click Next when you are ready to proceed.
    vCenter HA - Step 32.jpg
  33. Review the information on the ‘Ready to complete’ page and click Finish. You will then return to the Clone wizard.
    vCenter HA - Step 33.jpg

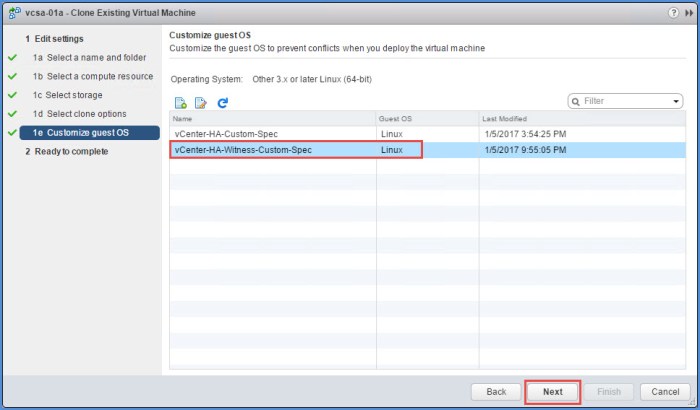

  34. Select the name of the new customization spec for the ‘Witness Node’ appliance and click Next.
    vCenter HA - Step 34.jpg

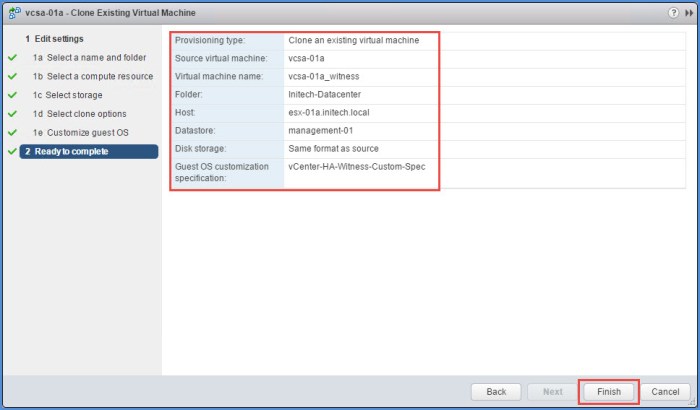

  35. Review the information on the ‘Ready to complete’ page for cloning the VM and click Finish.
    vCenter HA - Step 35.jpg

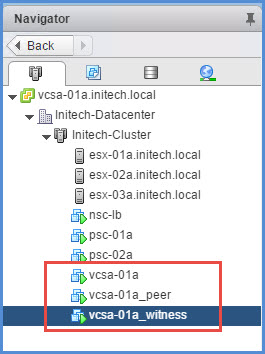

  36. The clone process will proceed, wait for it to complete and allow the VM to power on. Once this completes you will then see your three VMs listed in the VM inventory.
    vCenter HA - Step 36.jpg
  37. Return to the Configure vCenter HA wizard where we left off in Step 4. You can find the wizard in the upper right-hand corner of your browser in the Work In Progress section.
    vCenter HA - Step 37.jpg
    NOTE: Prior to finalizing the configuration and returning to the vCenter HA wizard…’power off’ the Witness appliance and reconfigure the hardware to use 1 vCPU and 1 GB of RAM. The Basic Workflow performs this automatically for you so you must manually do this when using the Advanced Workflow.

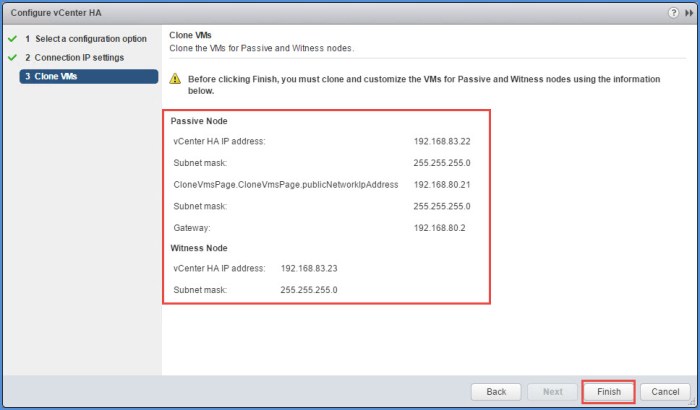

  38. The ‘Configure vCenter HA’ wizard will reappear where we left off on the ‘Clone VMs’ page. Review the information for the Passive and Witness nodes and click Finish.
    vCenter HA - Step 38.jpg

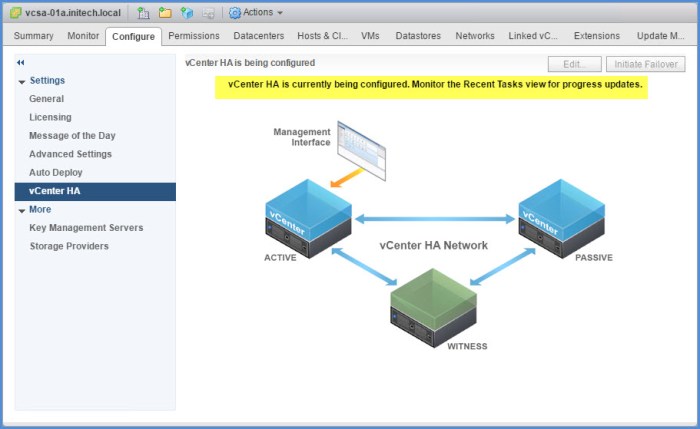

  39. vCenter HA will proceed with being configured. You will see at the top of the screen a status that indicates vCenter HA is currently being configured. Monitor the Recent Tasks view for progress updates.
    vCenter HA - Step 39.jpg

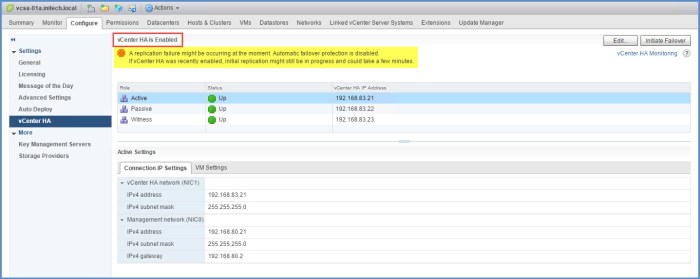

  40. Wait for the process to complete and once it completes it will indicate at the top that vCenter HA is Enabled and then replication between the Active and Passive nodes will take place. This warning message will eventually change.
    vCenter HA - Step 40.jpg

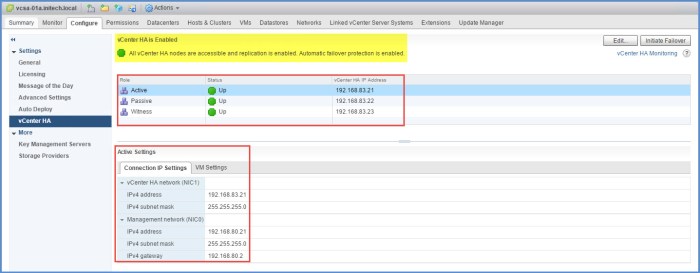

  41. Once replication is complete you will then see the health status change and indicate All vCenter HA nodes are accessible and replication is enabled. Automatic failover protection is enabled. You will also notice all three nodes (Active, Passive and Witness) all have a status of UP and their vCenter HA address is listed. If you select each node you can review the ‘Active Settings’ for the node below.
    vCenter HA - Step 41.jpg

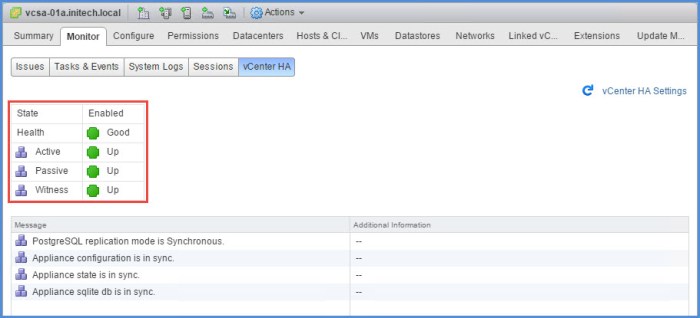

  42. In the upper right-hand corner beneath the ‘Edit’ and ‘Initiate Failover’ buttons is a link for vCenter HA Monitoring. Select the link and you will be redirected to the Monitor > vCenter HA tab for the vCenter Server. Click the ‘vCenter HA Settings’ link to return to Configure > vCenter HA.
    vCenter HA - Step 42.jpg
  43. In the event that Maintenance needs to be performed; from the Configure > vCenter HA page click the Edit button in the upper right-hand corner.
    vCenter HA - Step 43.jpg
  44. There are four (4) options available. The ‘Enabled HA’ is greyed out because vCenter HA is currently enabled. I did not highlight it here so you can visually see that it is greyed out. The ‘Maintenance Mode’ option allows replication to continue but disables automatic failover thus allowing the Active node to continue to run normally regardless of the state of the Passive or Witness nodes. The ‘Disable HA’ option completely disables replication and automatic failover but the configuration is preserved. The ‘Remove vCenter HA’ option completely removes the configuration with no disruption to the Active node. Click Cancel.
    vCenter HA - Step 44.jpg
  45. If you click the Initiate Failover button a dialog box will then appear. Use this option to perform a “planned failover” from the Active Node to the Standby Node. If you need to FORCE an immediate failover, check off the box and click Yes. Click No for now.
    vCenter HA - Step 45.jpg

IMPORTANT: The last thing you want to do is create a vSphere DRS anti-affinity rule to ensure these VMs, particularly the Active, Passive and Witness nodes, are already running on separate vSphere hosts. In a “perfect world” I would enable this feature on a cluster running with at least five (5) or six (6) ESXi hosts to ensure my two (2) PSCs and three (3) vCenter appliances are all running on a separate ESXi host. Six would be a sweet spot in my opinion for this particular configuration because that would allow me the flexibility of using a planned maintenance window on any ESXi host and not violate any anti-affinity rules. My anti-affinity rule would include all five (5) VMs and keep them separated at all times

If I have less than 5 or 6 ESXi hosts in the cluster I can still pull this off and probably do so by creating two separate anti-affinity rules. One rule to ensure the PSC appliances separated and another to ensure the Active, Passive and Witness nodes for vCenter are always separated. Just make sure you highlight the RISK involved; should a host go down in this smaller cluster it is “highly possible” the host outage will result in multiple components going offline; possibly a PSC appliance and a vCenter node.

Conclusion

This will conclude the step-by-step implementation and configuration of the new vSphere 6.5 feature vCenter HA (High Availability) using the Advanced Workflow option.

I want to point out a few things in the vSphere Availability Guide for ESXi 6.5 and vCenter 6.5 (Download) regarding the configuration of vCenter HA (starting on page 57 of the PDF). If you quickly reference Page 67 and the Clone Options sections of Step 2 an Step 3…the information is somewhat “vague” regarding the network configuration for the two clones.

The Passive Node has to function like a “twin” of the active node so it make sense as to why this clone must have the same identical host name and TCP/IP settings on NIC1. So moving forward, the NIC1 settings of the Passive and Witness nodes should have the same IP address settings as the Active node. So in the configuration above I used 192.168.80.21 (static IP of the active node) on the NIC1 settings for the Passive and Witness nodes. The only difference is the static IP’s on NIC2 which connect to the vCenter HA network (vDS port group) that I created.

Sizing the vCenter HA deployment should also be accounted for when sizing your environment to ensure performance. During the procedure above we deployed a SMALL vCenter Server appliance which is configured with 4 vCPU, 16 GB of memory and 290 GB of disk space. You multiply that by two for your Active and Passive nodes and the deployment will utilize 8 vCPU, 32GB of memory and 580GBof disk space. Lastly, add the 1 vCPU and 1GB of memory to the configuration to account for the witness. Make sure you account for these resources to properly size your environment.
